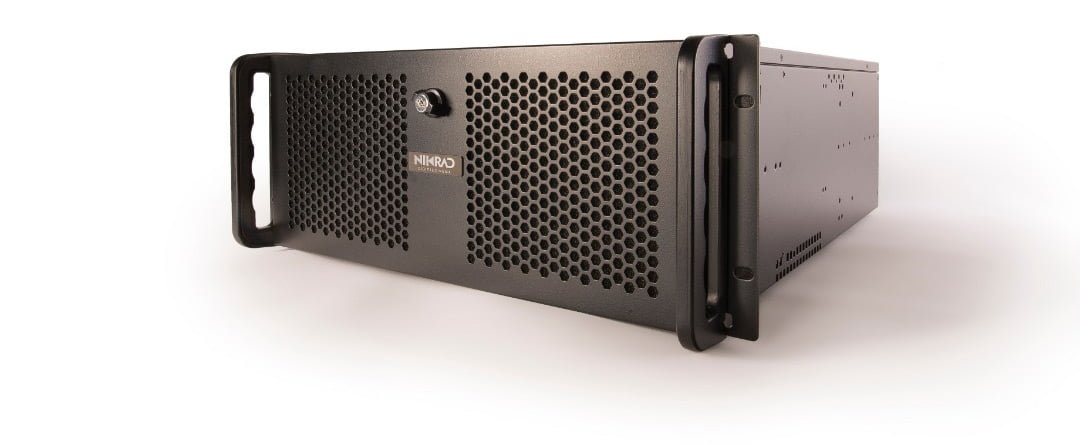

NIKRAD Digital Cinema Server NCSE-800
The NIKRAD NCSE-800 Digital Cinema Server is aimed at the
non-DCI E-Cinema and Pre-show markets.
The NCSE-800 cinema server provides superior reliability, image quality and unmatched feature set and reflects NIKRAD’s 8 years of digital cinema server design and manufacturing experience. The NCSE-800 support MPEG-2 files. It offers the highest level of security possible in an E-Cinema server with HDCP link encryption, trusted device list for display devices, 128-bit AES encryption for content and 2048-bit RSA encryption for keys.
- The third generation of NIKRAD Digital Cinema Servers
- Windows application UI which allows Playback Control, Shows Builder, DCPs and KDMs Management, Ingest Condition, System Setup Maintenance and Log Viewer
- Ability to set the projector to the server by the projectionist via Email, Phone, SMS, WhatsApp, Telegram and etc in just a minute
- Ingest unlimited DCPs and KDMs and Build shows while playing the movie on screen, all is automatically, just with one click without any problem.
- Possibility to work with all the features of the server while playing movie.
- The Expiration of KDMs date will be informed to the projectionist, five days in advance, when the server is turned on
- Play the movie, 25 seconds after the server is turned on
- DVI-D/HDMI outputs with HDCP link encryption and VGA output for UI monitor
- 8 channels of analog audio output and S/PDIF optical digital output
- Automation support through Serial, IP and optional GPIO (optional)
- Conforms to the MXF Interop Specification
- Utilizes E-Cinema specified MXF containers with 128-bit AES encryption for media
- 2048-bit RSA encryption is utilized for keys
- 4 TB hard disk for media storage and 120 GB SSD for operating system
- Multi language support
- And so many other features
Operating System | Microsoft Windows 8.1 |
Digital Image Output | DVI & HDMI with HDCP Encryption and trusted device list |
Control Panel | Monitor via VGA with Keyboard and Mouse |
Analog Audio Output | 25-pin D-sub Connector for 8-channel Analog Audio Output |
Digital Audio Output | S/PDIF optical digital output |
Image Compression | MPEG-2 4:2:2 & 4:2:0 up to 80 Mbps |
Image Resolution | Variable from SD PAL/NTSC to HD 1080i and 1080P |
Frame Rates | 23.97, 24, 25, 29.97, 30, 50, 59.94 & 60 fps |
Audio Compression | Linear PCM Audio |
Audio Sampling | 48 KHz and 96 KHz, 16 and 24-bit |
File Formats | MXF packaging for media files and xml packaging for compositions |
Storage | 4 TB for media storage and 120 GB SSD for operating system* |
Security | 128-bit AES Encrypted Content Start/End Date control by 2048-bit RSA Encrypted Keys |
Projectionist Interface | LCD monitor with keyboard and mouse |
Management Interface | Multi-function Windows-based Interface with Playback Control, Shows Builder, DCPS and KDM Management, Ingest Condition, System Setup-Maintenance and Log Viewer |
Power Supply | 100-240V AC 50/60Hz, 430W power supply |
Operating Temperature | 5 to 50 degrees C |
Operating Humidity | 10% to 90% non-condensing |
Size | 43 cm (W) x 17.8 cm (H) x 55 cm (D) 4U Rack Mountable Unit |
Weight | 20 Kg |
* Storage size can be increased based on customer preference.
** Technical specifications mentioned here, are subject to change without prior notice due to continuous product development.
